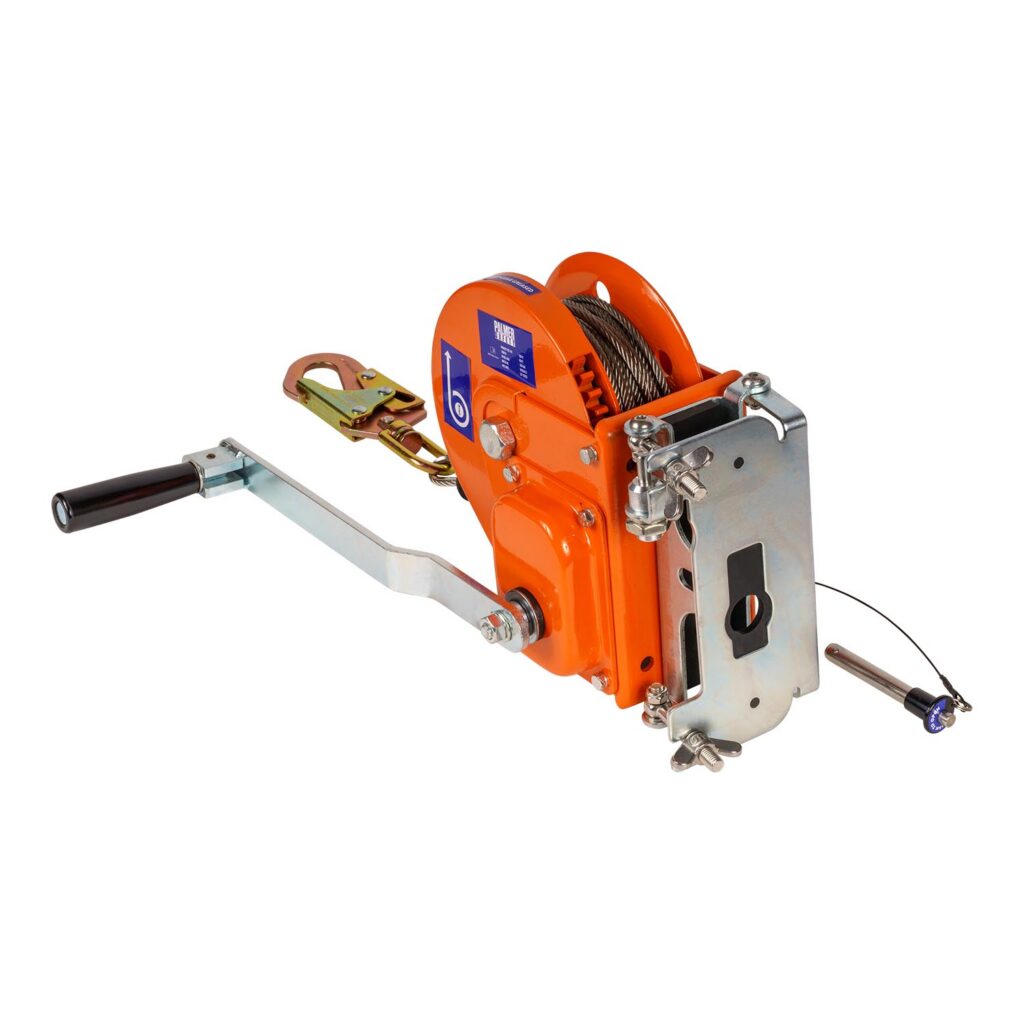

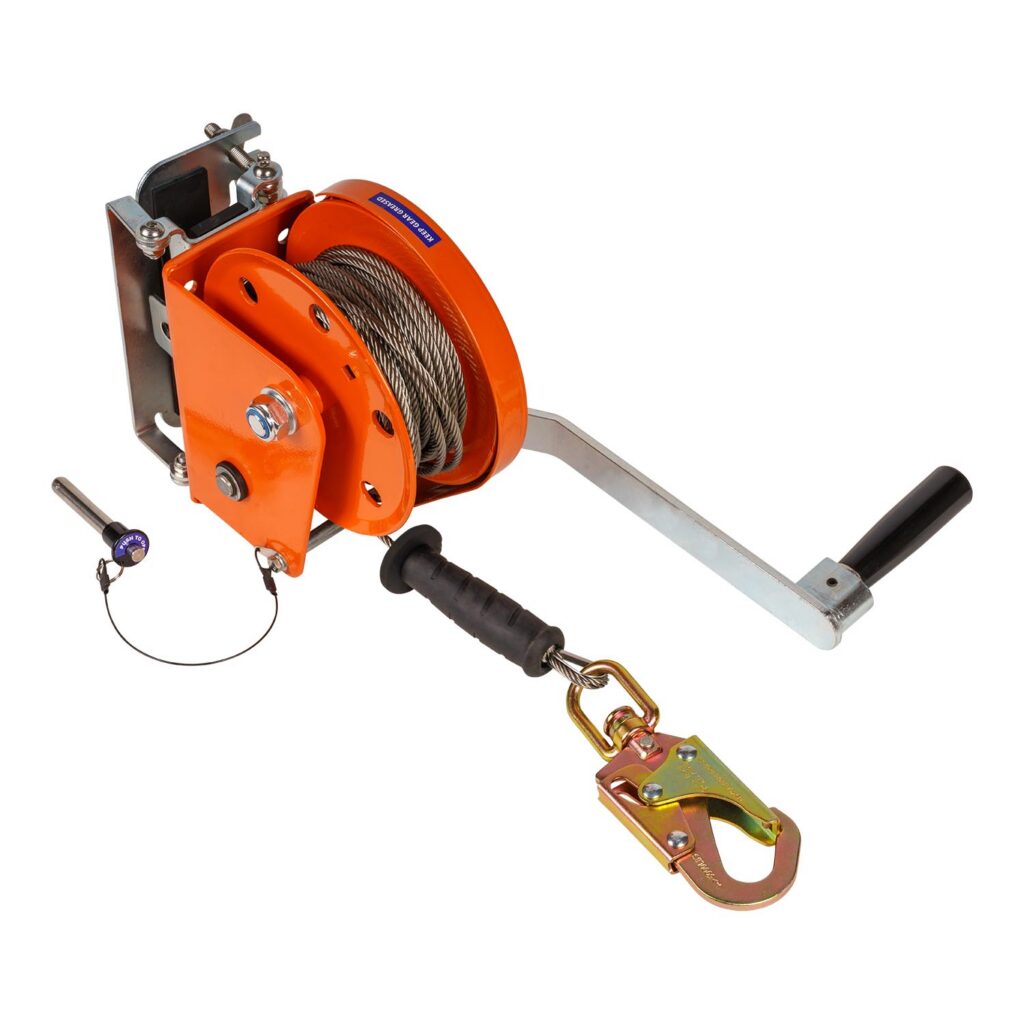

Confined Space Winch

DESIGN:

• Material or man lifting rescue winch.
• Mounting plate having four bolts for mounting with use of specialized brackets.
• Galvanized steel wire rope of 3/16” and length of 60’ maximum.
• Equipped with Swivel Steel Snap Hook (PN 144 as per ANSI Z359.12-2009 gate strength 3600 lbs.) as connector.
• Handle rotating mechanism for lifting or lowering.

BODY:

Material: Galvanized steel

RATED LOAD CAPACITY:

310 lbs.

VITAL TEST COMPLIANCE:

Static Strength: Tested at 3100 lbs.

WEIGHT:

20.61 lbs. ± 0.02 lbs.
