This premium dual-system solution equips workers with both active retrieval and passive fall arrest. It features a heavyduty tripod, a dedicated personnel winch, and a 60’ 3-Way Self-Retracting Lifeline with Rescue capabilities, providing maximum versatility and safety for confined space entry.
Key Features
INCLUDED COMPONENTS:
- Confined Space 7’ Tripod (CS717): Aluminum alloy tripod with telescopic legs and a three-pulley head.
- 60’ Personnel Winch (CS817): Rescue winch equipped with 60 ft. of stainless steel wire rope and a swivel snap hook.

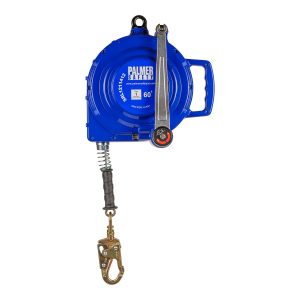

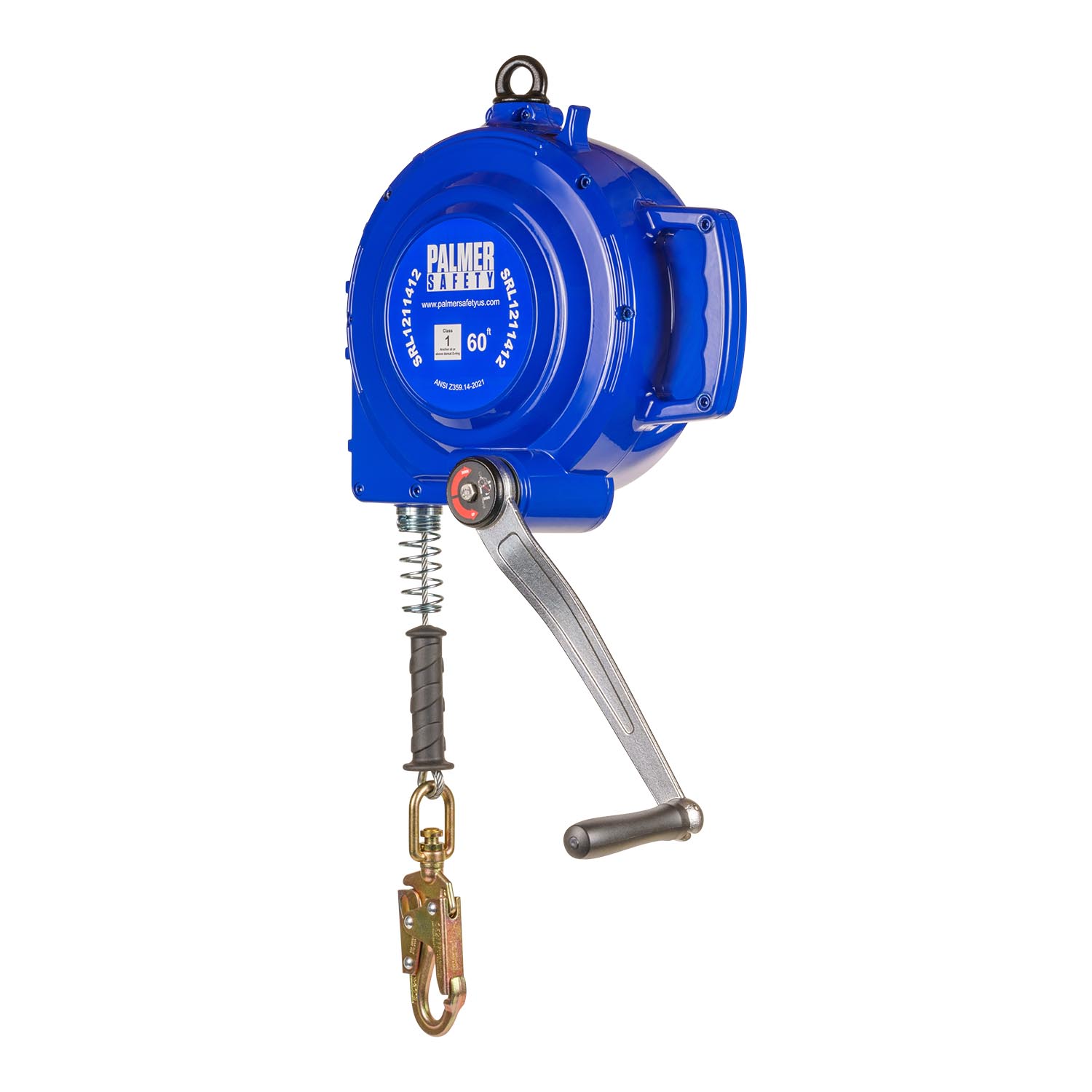

- BEAST™ Series 60’ SRL-R (SRL1211412): Features galvanized steel wire rope, a robust steel casing, and a built-in hoisting winch to toggle between fall arrest and retrieval modes.
- Tripod Mounting Bracket (CS2617): Heavy-duty alloy steel bracket to securely mount the SRL-R to the tripod leg.
WORKING LOAD:
310 lbs. (140kg) Personnel Capacity (SRL-R Minimum Breaking Strength: 3,000 lbs.)
TOTAL SYSTEM WEIGHT:
115.8 lbs. (Tripod: 46.3 lbs. | Winch: 25 lbs. | SRL-R: 39.7 lbs. | Bracket: 4.8 lbs.)
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.18-2017, ANSI Z359.14-2021 Class 1, and ANSI Z359.4-2013
