Palmer Safety

Confined Space Tripod

Availability: In stock

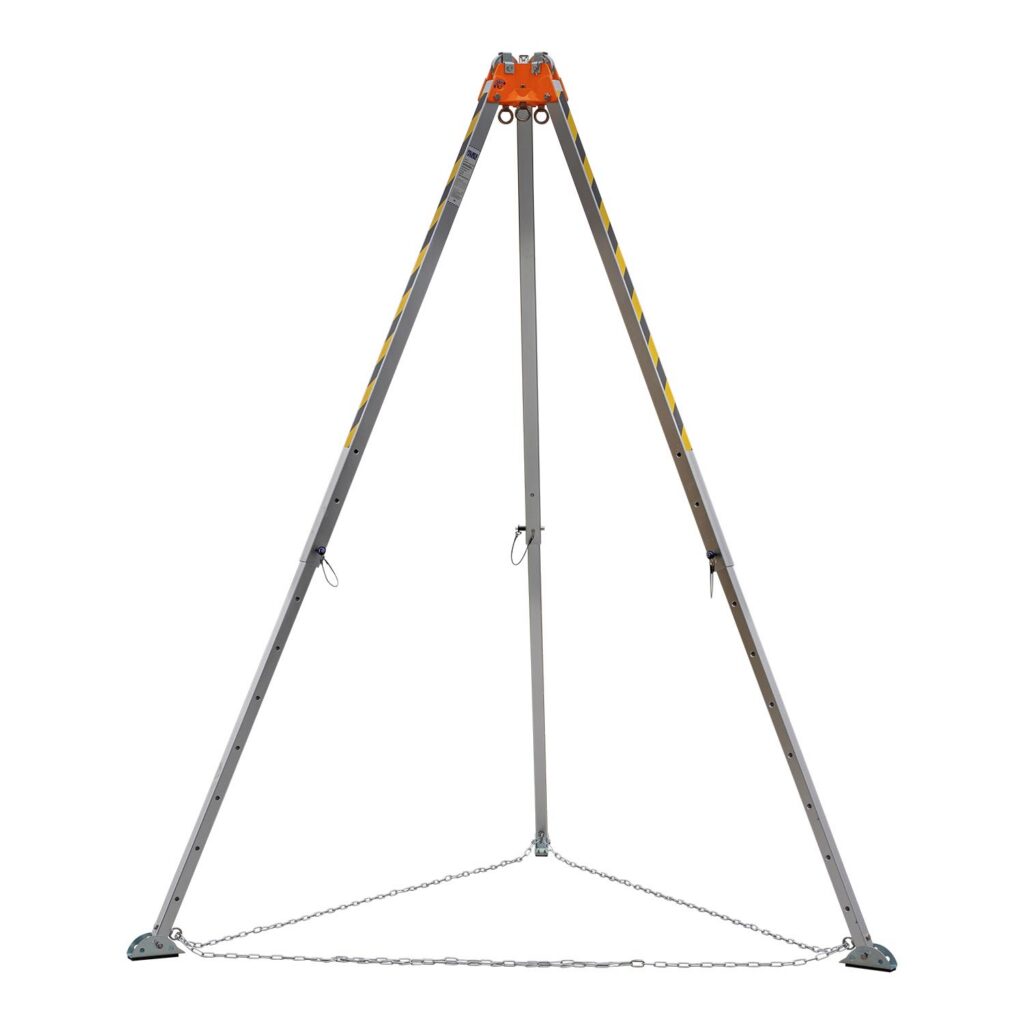

Confined Space Tripod – 7ft. Max load 1100 lbs. Adjustable height 4.3 ft. – 7 ft. Meets or exceeds ANSI Z359.1-2007, ANSI Z359.4-2013.

SKU: CS717 Category: Tag:

Confined Space Tripod – 7ft. Max load 1100 lbs. Adjustable height 4.3 ft. – 7 ft. Meets or exceeds ANSI Z359.1-2007, ANSI Z359.4-2013.

Key Features

DESIGN:

  • Adjustable height from 4’4” (1.32 m) to 7’ (2.13 m) from ground level.
  • At minimum height, distance between legs (foot point): 3’2” (0.96 m) & foot print diameter of 3.97’ (1.21 m).
  • At maximum height, distance between legs (foot point): 5’8” (1.72 m) & foot print diameter of 6.56’ (6.56 ft.).
  • Adjustment achieved by sliding telescopic legs (inner & outer).

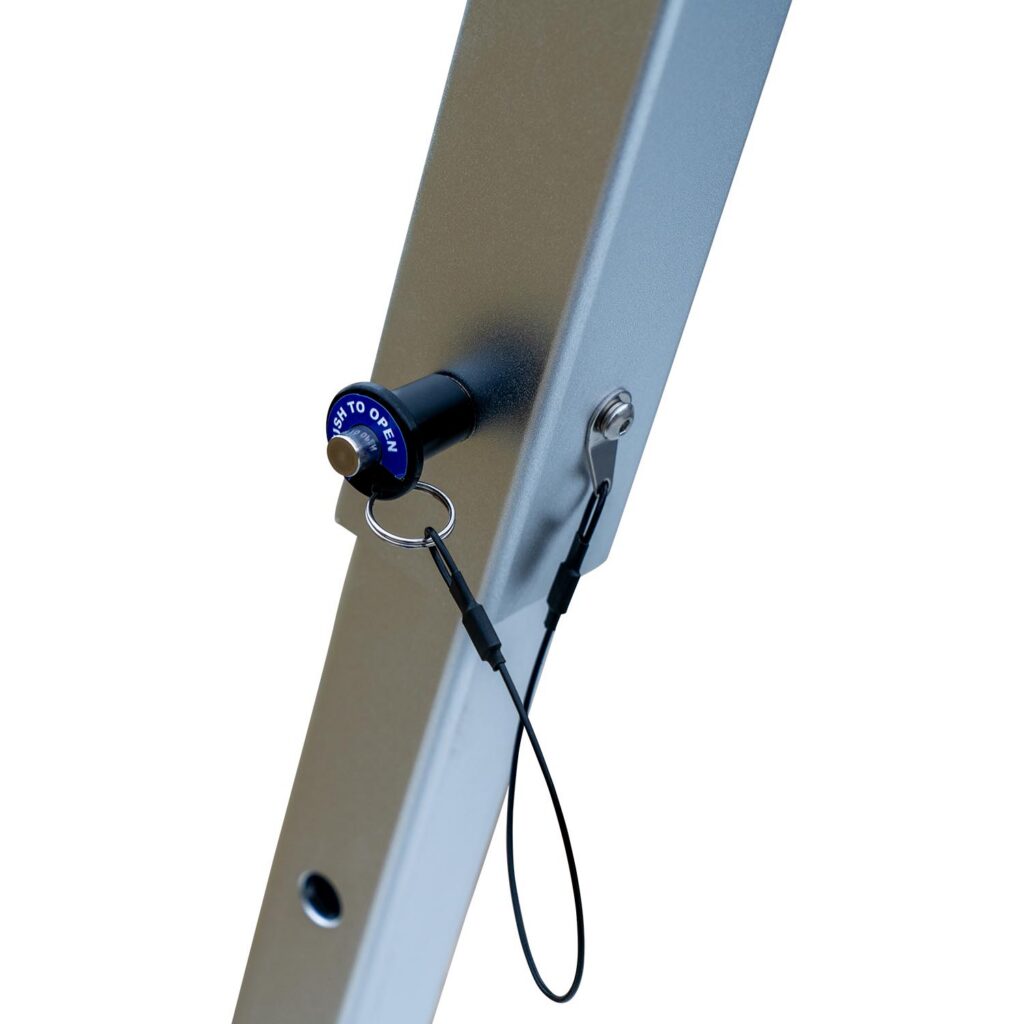

  • Locking pins attached by SS cables.

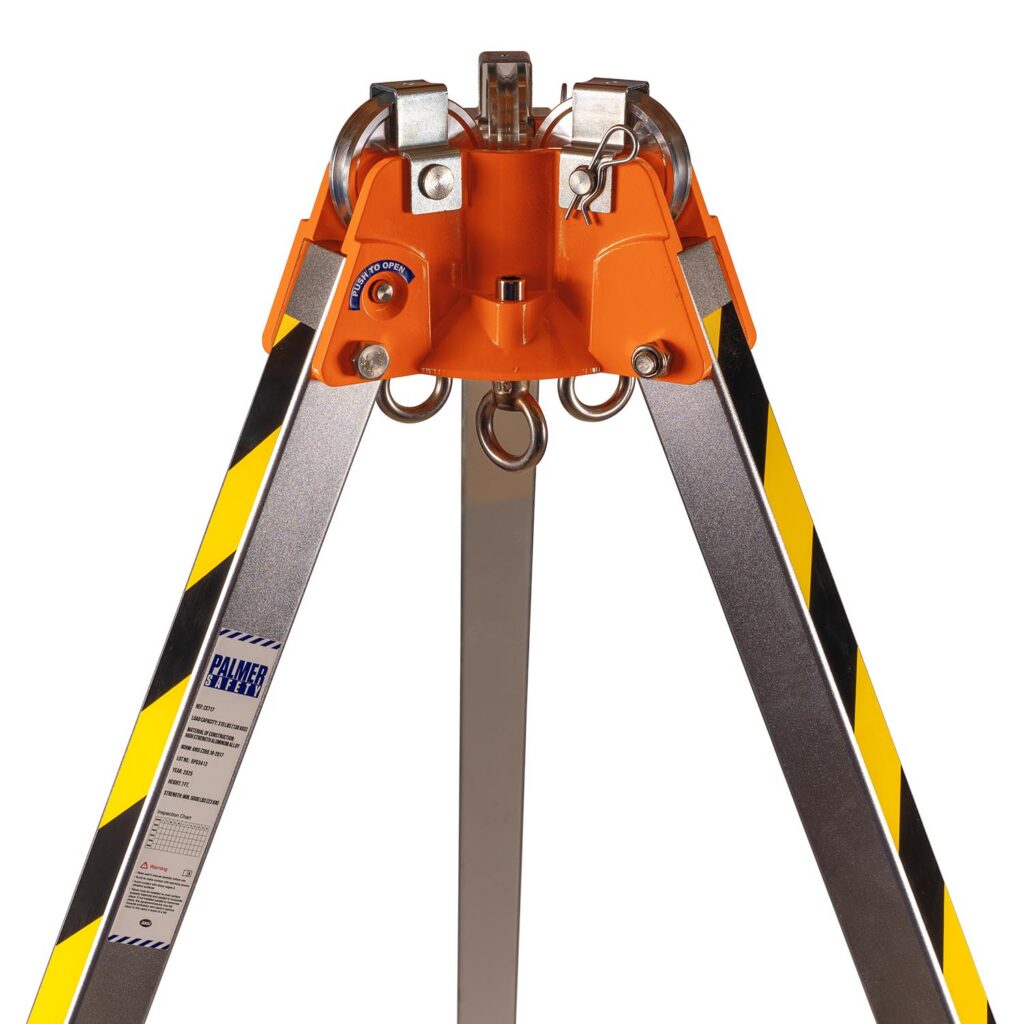

  • Securely connected two eye bolts to be used for connection to personal protective equipment.

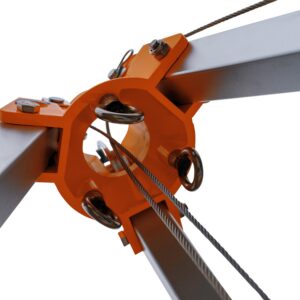

  • Two pulley system provided to pass the wire rope of winch mounted on one leg and retrieval block on the other leg simultaneously.

LOAD CAPACITY:

310 lbs. (As per ANSI Z359.1)

TRIPOD LEGS:

Material: Prime quality aluminum alloy | Finish: Anodized

HEAD:

Material: Prime quality aluminum alloy | Finish: Powder coated

LOCKING PINS:

Material: Prime quality aluminum alloy eye bolt & stainless steel locking pin
Finish: Deburred & polished

VITAL TEST COMPLIANCE:

Static Strength: 25 kN (5000 lbs.) for 1 minute

WEIGHT:

41.9 lbs. (19.01 kg)
