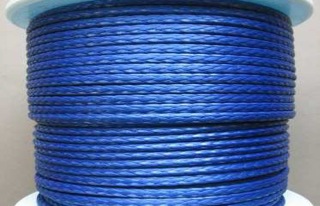

12 Strand Performance-Brand UHMPE Rope

Made in China

Our heat-treated 12 strand single braid UHMPE rope with polyurethane coating is a torque-free 12-strand single braid that yields a maximum strength-to-weight ratio. With the same strength as steel wire rope of similar diameter, this rope is an excellent replacement for wire rope. Additionally, a specific gravity of 0.98 means that this rope floats which makes it very useful in a marine environment.

  • Available colors: blue
  • Additional sizes and colors available to special order
  • Standard reels of 600ft and 1200ft
  • Available as cut lengths
Code Inch (dia.) MM (dia.) Circ (inch) Tensile (lbs) Lbs/100ft
HMPE3/16 3/16 4 9/16 4900 1.00
HMPE1/4 1/4 6 3/4 7,700 1.60
HMPE5/16 5/16 8 1 13,182 2.60
HMPE3/8 3/8 10 1-1/8 19,000 3.90
HMPE1/2 1/2 12 1-1/2 30,400 6.40
HMPE5/8 5/8 16 2 47,500 10.70
HMPE3/4 3/4 18 2-1/4 58,000 13.95
